Vehicle-specific ROCK-IT Bars for 2004-2012 GMC Canyon with adjustable-width formed-steel cross sections, no-drill mounting, tent-ready top slots, and a direct upgrade path to a full ROCK-IT Rack.

ROCK-IT BARS AT A GLANCE

HMOR ROCK-IT Bars for 2004-2012 GMC Canyon are the leaner entry point into the ROCK-IT system. Formed-steel pillars and slotted crossbars create a strong, adjustable-width platform for rooftop tents, cargo, and accessories without the runners and side panels of the full rack. Choose two or three complete cross sections, then add compatible ROCK-IT runners and side components later to build into a full ROCK-IT Rack.

CHOOSE YOUR SETUP

Select the height and mounting style shown in this product's options. Choose the number of cross sections offered for your application. If a Softopper-compatible option appears, select it only for the matching canopy setup. Review the mounting and fitment notes below before ordering.

MOUNTING & FITMENT

Designed for 2004-2012 GMC Canyon applications. Available heights are 12, 17, and 23 inches. Mounting options include HMOR Non-Track no-drill mounting or Retrax XR / Roll 'N Lock XT Bed Cover integrated T-slot rails. ROCK-IT Bars are sold by cross-section count rather than rack length, so no bed-length selection is required. Rack width is adjusted during assembly to match the truck bed. Select the configuration that matches your mounting system, desired height, and two or three cross sections.

HMOR no-mod pinch-clamp mounting close-up

HMOR Non-Track Mounting

HMOR pinch-clamp mounting for supported pickup beds without a compatible OEM rail system.

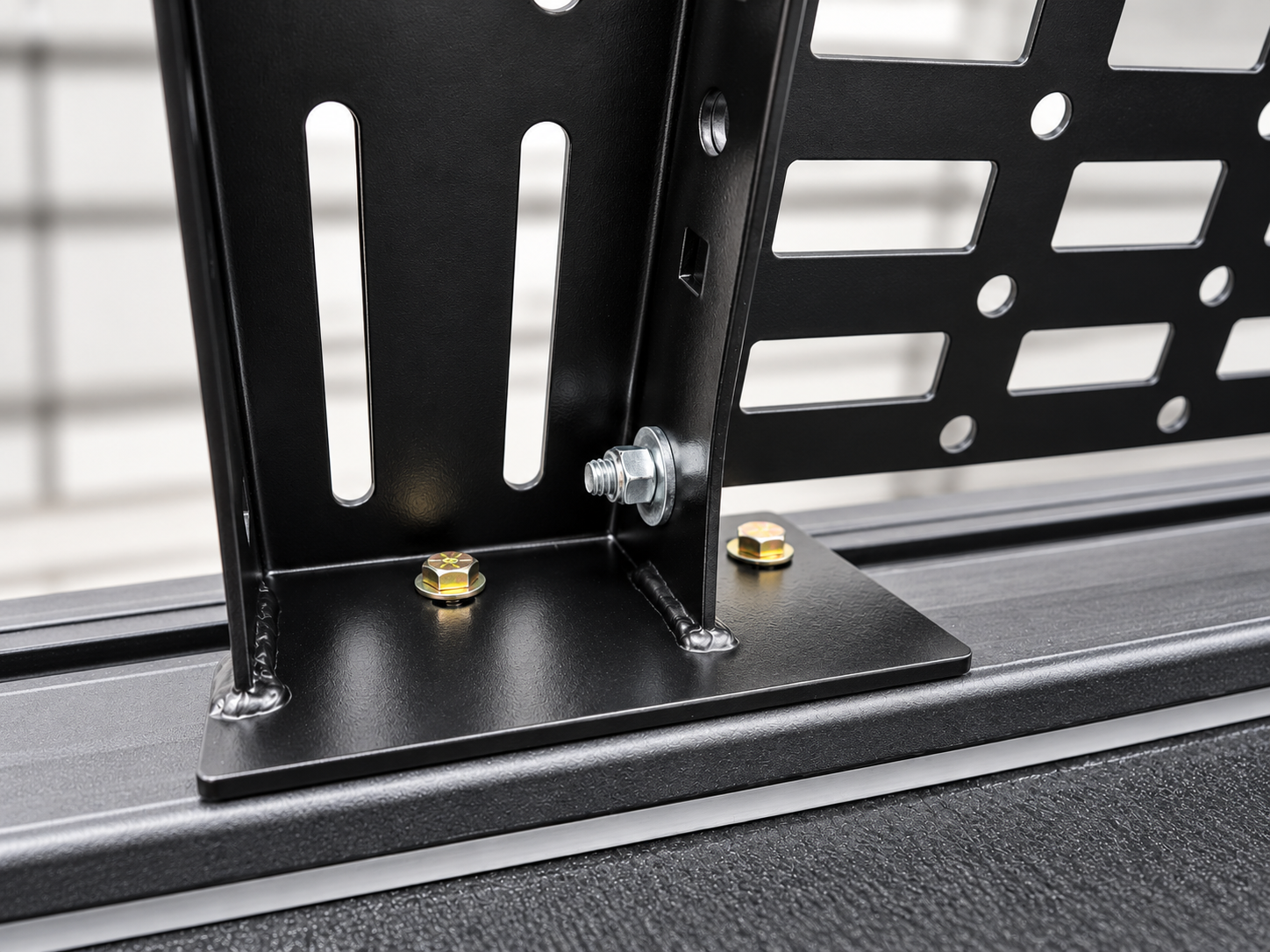

HMOR Retrax and Roll-N-Lock XT T-slot mounting close-up

Retrax XR / Roll-N-Lock XT

Flat mounting plates engage the supported T-slot rails used by Retrax XR and Roll-N-Lock XT systems.

LOAD RATINGS

Set of 2: 500 lbs Static & Dynamic. Set of 3: 750 lbs Static & Dynamic. Static = vehicle not moving. Dynamic = vehicle in motion. Rough off-road impacts can exceed normal dynamic conditions. Do not exceed the vehicle manufacturer's load capacity. Evenly distributed loads only.

WHAT'S INCLUDED

Selected ROCK-IT Bars configuration includes either two or three complete cross sections as selected. Each cross section includes two formed-steel pillars and one slotted crossbar, plus rack-to-vehicle mounting hardware and assembly hardware. Black powder coat is included. Runners, side panels, and other full ROCK-IT Rack components are not included.

INSTALLATION

HMOR ROCK-IT Bars for 2004-2012 GMC Canyon assemble as a bolt-together modular rack foundation and mount using HMOR Non-Track no-drill mounting or Retrax XR / Roll 'N Lock XT Bed Cover integrated T-slot rails. Rack width is adjusted during assembly before the crossbars are secured into position. Rack assembly hardware and the selected rack-to-vehicle mounting hardware are included. Confirm mounting system, rack height, cross-section count, and required clearances before installation.

UPGRADE TO A FULL ROCK-IT RACK

ROCK-IT Bars form the cross-section foundation of the modular ROCK-IT system. Compatible ROCK-IT components can be added later to expand the Bars system into a Full ROCK-IT Rack where supported. Confirm compatibility for your specific vehicle and configuration before upgrading.

FAQ

Warranty

HMOR-manufactured products are backed by a limited lifetime warranty for the original purchaser against defects in materials and workmanship. Paint, powder coating, and other coatings are not covered. Damage from misuse, overloading, accidents, neglect, abuse, modification, transfer to another owner, or racing or competition use is excluded. Warranty eligibility is at the sole discretion of HMOR. See full warranty policy for complete terms.

Shipping

Orders are processed Monday through Friday during normal business hours. Domestic U.S. orders are shipped via UPS Ground or USPS unless special arrangements are made. Expedited options are available upon special request. We do not ship to P.O. Boxes. If an order is delayed or contains backordered items, we will make every effort to notify you as soon as possible. Please inspect your shipment immediately upon delivery. Any damage or breakage must be reported directly to the shipping carrier as soon as possible.

Fitment Notes

Designed for 2004-2012 GMC Canyon applications. Available heights are 12, 17, and 23 inches. Mounting options include HMOR Non-Track no-drill mounting or Retrax XR / Roll 'N Lock XT Bed Cover integrated T-slot rails. ROCK-IT Bars are sold by cross-section count rather than rack length, so no bed-length selection is required. Rack width is adjusted during assembly to match the truck bed. Select the configuration that matches your mounting system, desired height, and two or three cross sections.

How do I care for the powder-coated finish?

Proper care helps protect the powder-coated finish from chips, scratches, corrosion, and long-term wear. See the HMOR Powder Coat Care & Maintenance Guide for cleaning, maintenance, touch-up, and repair recommendations.
